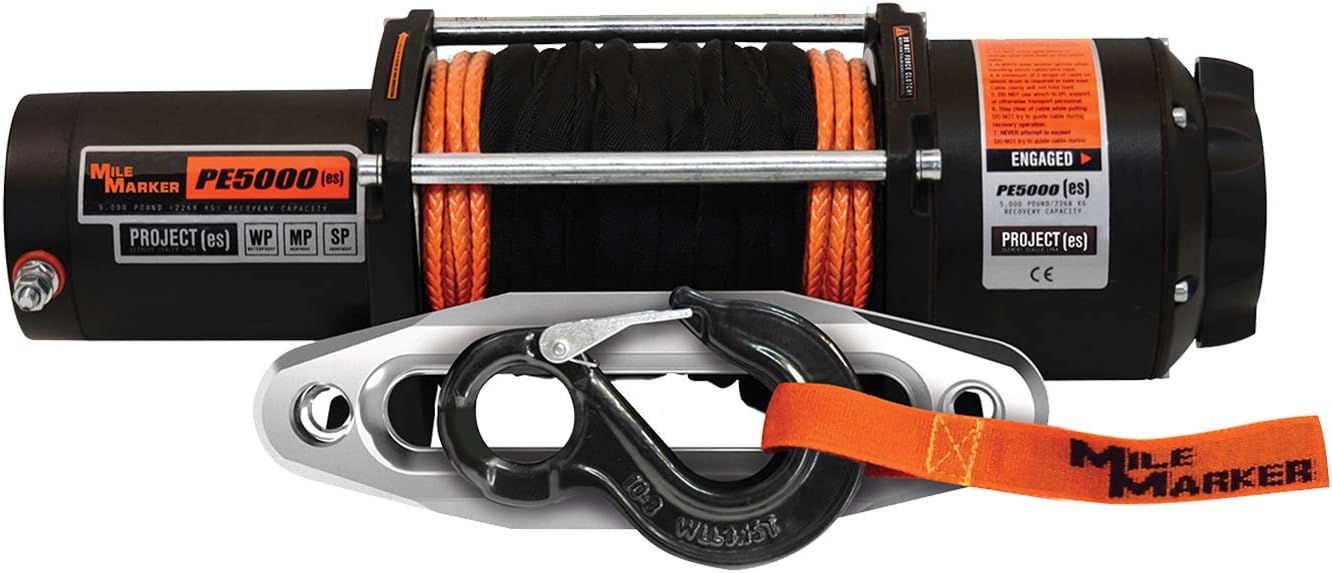

5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364

5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364

$32.50 $106.23
Skip to product information
5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
  • 5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364
5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364

5,000 lb. Capacity Sealed Electric Winch with Synthetic Rope P412364

$32.50 $106.23
Shipping calculated at checkout.
Powerful permanent magnet motor100% waterproof, snow proof, and mud proof (IP68 standard)Compact, light design3-stage planetary gear train, 165: 1 gear ratioFast line speeds, high performance

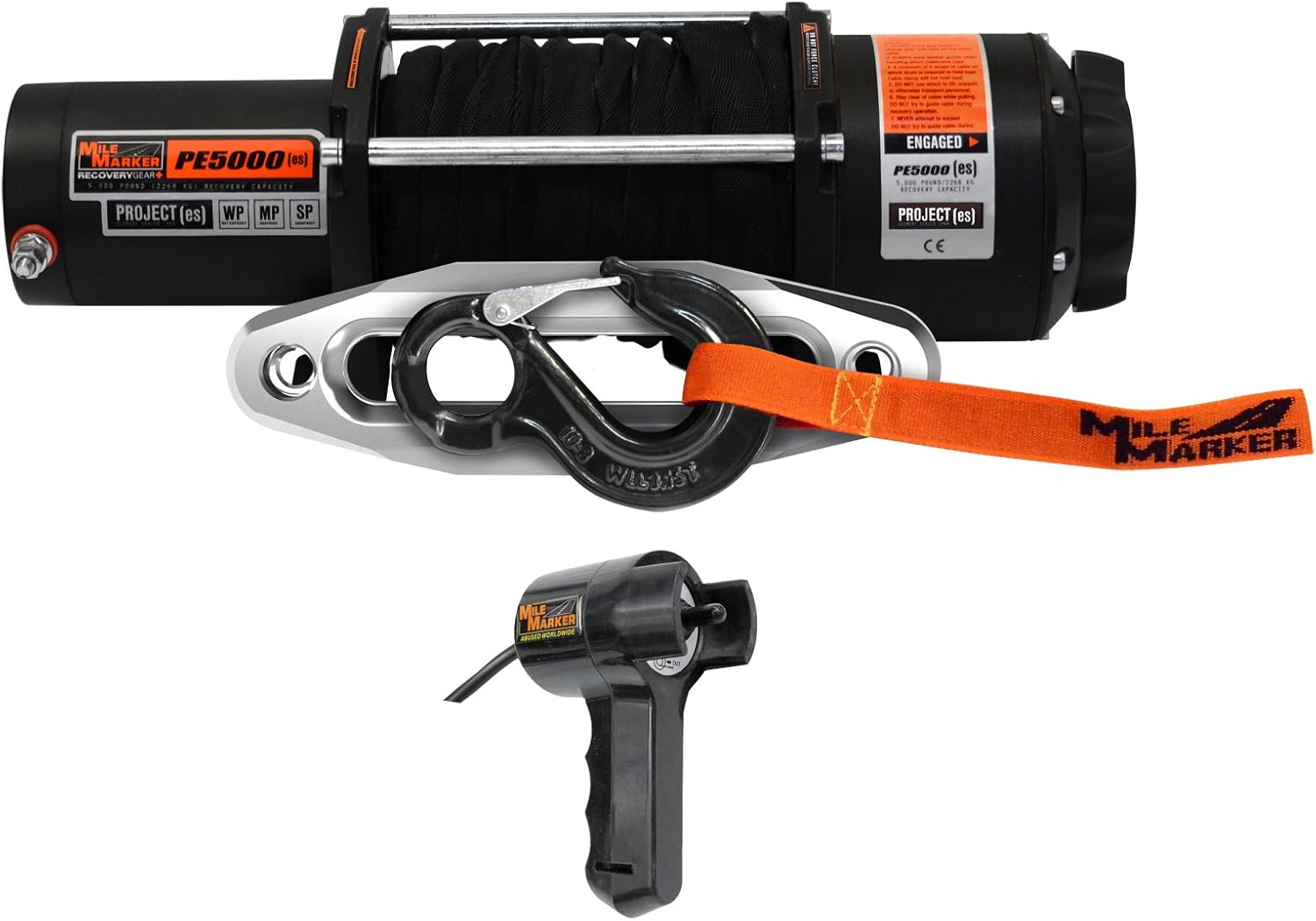

The PE5000(es) stands up to the most aggressive off-road environments. With its 5, 000 pulling capacity, fully sealed design and 300-amp solenoid, this winch is truly waterproof, mud proof and snow proof. Power is compacted into a high output, permanent magnet motor and marine grade remote control connectors, ensuring impressive recovery speeds and maximum duty cycle. All metal, 3 stage planetary gear train. Includes 50 feet of cable, a galvanized roller fairlead, hook, tie rods and a handheld remote control. Mile Marker products have been trusted by off-road enthusiasts, powersport professionals and the United States military for over 30 years.

Gear Train 2 Stage Planetary 2 Stage Planetary 3 Stage Planetary 3 Stage Planetary
Gear Ratio 242:1 242:1 165:1 150:1
Motor 3.7 hp, 12V 4.6 hp, 12V 3.8 hp, 12V 3.7 hp, 12V
Control Pendant Power-In, Power-Out 12' Remote Power-In, Power-Out 12' Remote Power-In, Power-Out 12' Remote Power-In, Power-Out 12' Remote
Dimensions (LxWxH) 13.2” X 4.6” X 4.3” 13.5” X 4.5” X 4.3” 13.5” X 4.5” X 4.3” 17.32” X 6.34” X 7.86”
Steel Cable / Synthetic Rope Specifications Steel Cable: 7/32” X 45’ Steel Cable: 3/16” X 39’ / Synthetic Rope: 3/16” X 50’ Steel Cable: 1/4’’ X 50’ / Synthetic Rope: 1/4" x 50' Steel Cable: 1/4" x 80'
Drum Size 2.01” X 3.15” 2.01” X 3.15” 2’’ X 5.4’’ 2.5" x 5.5"
Net Weight Steel Cable 15.1 lbs Steel Cable 17.3 lbs / Synthetic rope14.3 lbs Steel Cable 23.7 lbs / Synthetic Rope 19.5 lbs Steel Cable 49
Bolt Pattern 4 Bolt Pattern, 4.88" x 3" 4 Bolt Pattern, 4.88" x 3" 4 Bolt Pattern, 3" x 6.61" 4 Bolt Pattern, 6.535" x 4.5"
